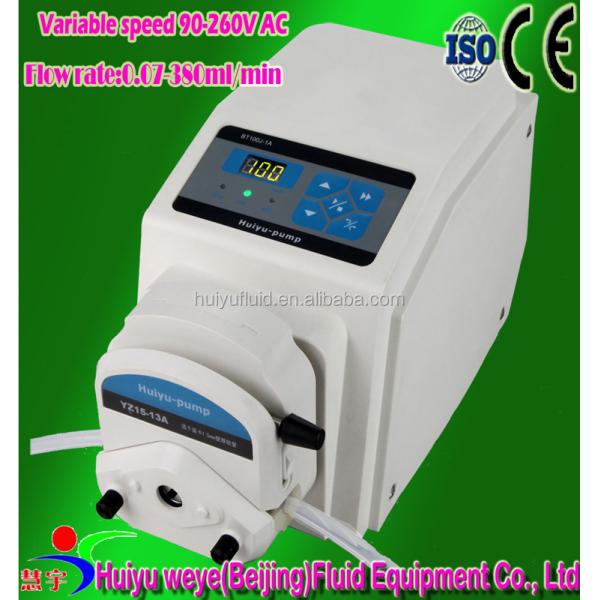

Multi channels adjustable flow rate welco peristaltic pump

Name: Multi channels adjustable flow rate welco peristaltic pump
Brand: Huiyu fluid, Multi channels adjustable flow rate welco peristaltic pump
Price: 200.00 USD

Wholesale Multi channels adjustable flow rate welco peristaltic pump from china suppliers

Warranty : 1year

Customized support : OEM

Brand Name : Huiyu fluid, Multi channels adjustable flow rate welco peristaltic pump

Model Number : BT100J-1A, BT100J-1A

Place of Origin : Beijing, China

Application : Food and Beverage Industry, Pharmaceutical industry, wastewater treatment, chemical dosing ,transfer ,filling,dispensing

Horsepower : 0.04

Power Source : Electric

Pressure : 0.2mpa

Structure : peristaltic pump

Cable Length : 1.5m

Outlet Size : 6.4mm

Voltage : 220v 110v

Power : 40w

motor : stepper motor

Motor speed : 1 to 100 rpm, reversible

Flow rate : 0.00025-380ml/min

Usage : medical, biological ,chemical,laboratory

Power supply : AC 90V-260 V 50/60 Hz

Power consumption : ≤30 W

Dimensions : 243x151x157 (mm)

Certification : ce

Packaging Details : Multi channels adjustable flow rate welco peristaltic pump
packing:1set in 1 carton , size: 39cm x 22cm x 24cm

Port : Beijing

Supply Ability : 1000 Set/Sets per Week

Price : $200.00 - $450.00/sets

Contact Now

Product Description

Multi channels adjustable flow rate welco peristaltic pump

Technical parameter
Speed: 0.1 to 100 rpm, reversible
Speed precision: 0.1 rpm
Speed control: Membrane keypad cw(green light)/ ccw(blue light) control
Display: 3-digit LED displays current rpm
External control: Start/stop, cw/ccw control and speed control 0-5 V/10 V, 4-20 mA and 0-10KHz
Communication interface: RS485
Power supply: AC 90V-260 V 50/60 Hz
Power consumption: ≤30 W
Operating condition: Temperature 0 to 40 ℃, Relative humidity < 80%
Drive weight: 2.5 kg
Dimensions (L×W×H): 243×151×157 (mm)
IP rating: IP 31

Technical Data Sheet

Pump head	Model	Available tubing	flow rate range (ml/min)
	YZ15-l3A	13#, 14#, 19#, 16#, 25#, 17#, 18# wall thickness:1.5mm	0.07-380ml/min
	YZ25-l3A	15#, 24# wall thickness:2.5mm	0.2-270ml/min
	DG10-lA	wall thickness:0.8-1.0mm ID≤3.17mm A Refers to 6 rollers; B refers to 10 rollers	0.00025-48ml/min
	DG10-1B		0.0002-32ml/min
	DG10-2A		0.00025-48ml/min (Single channel)
	DG10-2B		0.0002-32ml/min (Single channel)
	BZ25-lA	24# wall thickness:2.5mm	0.26-260ml/min

Tubing details

Suitable pump head

Multi channels adjustable flow rate welco peristaltic pump

Accessories

Multi channels adjustable flow rate welco peristaltic pump

OEM option

Multi channels adjustable flow rate welco peristaltic pump

Packaging & Shipping

Multi channels adjustable flow rate welco peristaltic pump

Special designed carton and foam plastic cushion

Professional bundling machine ensure safe delivery to customers directly .

These precise instruments are mainly delivered by Express like DHL FedEx etc.

Our Services

1 year warranty for all of our pumps

CE certificate

Multi channels adjustable flow rate welco peristaltic pump
